Supply OEM/ODM China RGB Full Color Outdoor Waterproof LED light strip

Short Description:

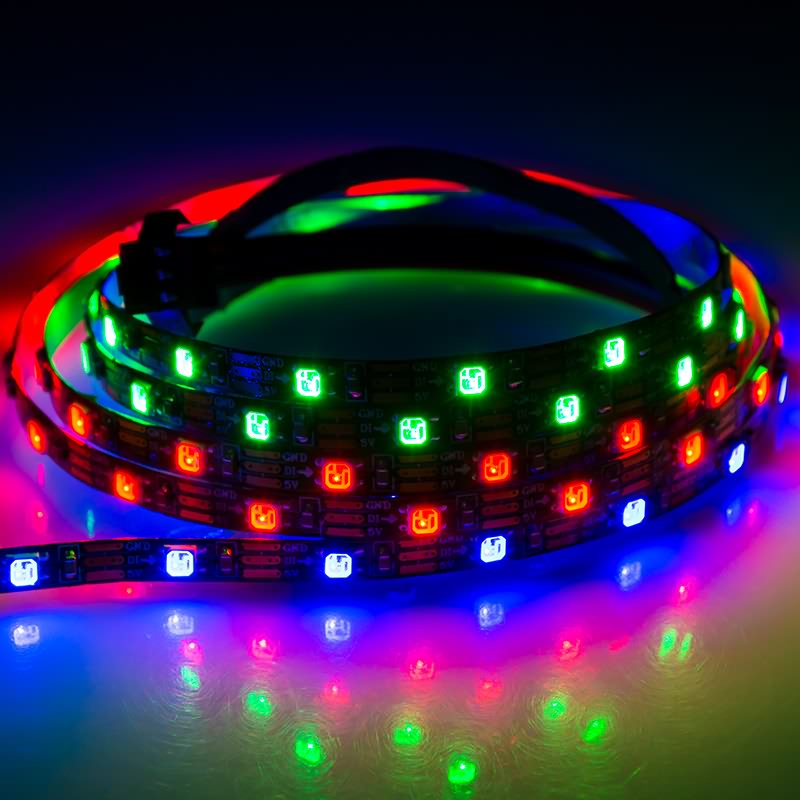

(1) LC8812B-3535/SK6812mini Digital LED Strips is using the 3535 RGB LEDS as the lighting source. LC8812B-3535 LED is the upgrade led on the base of SK6812 mini LED, pin to pin function, same control way, can use same pcb design, but bigger view angle.

(2) Each led individual controlled, one led 1 pixel and can be cut.

(3) Operating Voltage 5 Voltage DC.

(4) SPI signal control system, DVI video control system,DMX console controllable.

(5) Madrix Software available (work with some special controllers).

High intensity video screen,video wall,water running effect,breathing effect,color


Product Detail

Product Tags

Our firm sticks on the theory of “Quality will be the life in the enterprise, and status could be the soul of it” for Supply OEM/ODM China RGB Full Color Outdoor Waterproof LED light strip, If you are intrigued in almost any of our items or would like to discuss a custom buy, you should really feel no cost to get hold of us.
Our firm sticks on the theory of “Quality will be the life in the enterprise, and status could be the soul of it” for China Led Light strip, led strip flexibility, For anyone who is keen on any of our merchandise right after you view our product list, you should definitely feel absolutely free to get in touch with us for inquiries. You are able to send us emails and contact us for consultation and we shall respond to you as soon as we can. If it’s easy, you may locate out our address in our web-site and come to our business for far more information of our goods by your self. We’re always ready to construct extended and steady co-operation relations with any possible customers in the related fields.

Product Specifications:

Product Name LC8812B-3535/SK6812mini RGB LED Strip
LED type 3535 SMD LED
IC type LC8812B/SK6812
Emitting color Digital RGB
LED Q’ty 30led/m, 60led/m, 144led/m
Pixel Q’ty 30pixel/m, 60pixel/m, 144pixel/m
LED View angle 120 Degree
PCB Color White/Black
IP Rating IP20, IP65, IP67, IP68.
Length/Roll 5M/Roll, strip length can be customized
Working Voltage DC5V
Certification: CE, EMC, FCC, LVD, RoHS
CRI (Ra>): 80
Warranty(Year) 2-Years



Model

LED Qty

IC Qty

Voltage

Max Power

Gray Scale

Color

Width

LC-8812RGB30XM5X-5V

30

30

5V

9W/M

256

Digital RGB

5mm

LC-8812RGB60XM5X-5V

60

60

18W/M

256

5mm

LC-8812RGB144XM8X-5V

144

144

14.4W/M

256

8mm

Application:

It is widely used in decoration and lighting of floors, ceilings, furniture, cars, ponds, advertisements,signs advertising commerce and so on.

LED Strip Connection Diagram:

NOTE

1. The specification is only for regular quotation products, specific products have specified parameters, which are not within the scope of this specification.

2. The AC wiring must be connected to the ground wire to prevent electric shock.

3. The overload current of the main wire of the LED Strip is the sum of the currents of the sub-wires, so in actual engineering applications, the model of the main wire should be appropriately increased to prevent the wire from overheating and accidents.

FAQ

Q: Does all the LED product pass RoHs?

A: Yes, all of our led products pass RoHs, we use qualified material and have CE and RoHs Certificate.

Q: What payment way you accept?

A: T/T, Paypal, Western union all works to us.

Q: Why customer choose us?

A: a.Factory manufacturer,we can control the production process ,all our products have quality assurance, higher cost-effective and Fast delivery.

b.OEM/ODM Service: we are factory manufacturer and can provide OEM/ODM,customized service to meet customers` different demand.

c.Professional in LED: our factory team has 10 years experience in the area of the digital led strip works.

d.Quality Assurance: all our products have to be 100% aged and QC test before delivery.

Q:How to deal with the faulty?

A: Firstly, all our products have to be 100% aged and QC test before delivery, so the defective rate will be less than 0.2%.

Secondly,during the guarantee period,we will send new lights with new order for small quantity. For the batches of defective products, we will repair them and resend to you. More over, we can discuss the satisfactory solution based on the specific conditions.

Q: Does all the products designed by yourself?

A: Yes, our boss is also an engineer and we have more than 10year experienced engineer team, all the led products designed by ourselves.

Our firm sticks on the theory of “Quality will be the life in the enterprise, and status could be the soul of it” for Supply OEM/ODM RGB Full Color Outdoor Waterproof LED light strip, If you are intrigued in almost any of our items or would like to discuss a custom buy, you should really feel no cost to get hold of us.
Supply OEM/ODM China RGB Full Color Outdoor Waterproof LED light strip, For anyone who is keen on any of our merchandise right after you view our product list, you should definitely feel absolutely free to get in touch with us for inquiries. You are able to send us emails and contact us for consultation and we shall respond to you as soon as we can. If it’s easy, you may locate out our address in our web-site and come to our business for far more information of our goods by your self. We’re always ready to construct extended and steady co-operation relations with any possible customers in the related fields.
