5V 12V Individually Pixel LED Chip 5050 3535 2020 1515 White CCT RGB RGBW
Individually Pixel LED Chip
DC5V
DC12V
White
RGB
RGBW
CCT
-

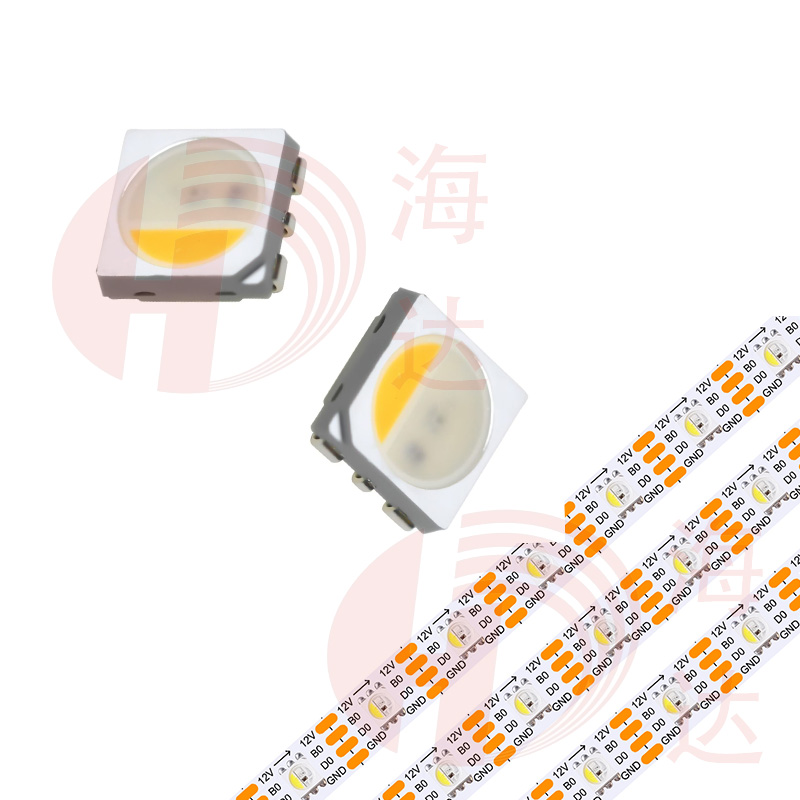

12V SK6812 RGBW LED Chip 5050SMD
sk6812 rgbw
12v individually
RGBW= RGB + White(3000k/4000k/6000k)
LED source :5050SMD RGBW/WW/WWA built-in SK6812 chip
We Newstar is only one factory who can make DC12V SK6812 RGBW LED chip -
WS2813 RGBW Addressable LED Components Chip
WS2813 5050 RGBW LED chip is an intelligent control LED light source that the control circuit and RGBW chip are integrated in a package of 5050 components. Its internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC5V voltage programmable constant current control part, which achieves highly consistent color effect.
-
HD108 RGB Pixel LED Chip 5050 addressable 65536 16bit LEDs
HD108 pixel LED chip adopt Newstar’s IC to keep long lifespan, top quality/most stable/fastest run speed.
What is HD108 LEDs?
Upgrade of HD107S, but it is 16-bit 65536 gray, many controller support it, such as Advatek controller, very goods leds to make more colorful LED product.
PWM refresh rate: 27kHz, Oscillator frequency: 40Mhz. -
HD107-3535 LED Chip compatible with APA107/SK9822/HD107S 3535
(1) HD107-3535 is an intelligent externally controlled 3535 pixel RGB LED that integrates a control circuit and a light-emitting circuit. It is LC8822 IC inside, compatible with sk9822/APA102C, same control way, each LED is a pixel addressable.
(2) The data transmission adopts clock and data signal protocol, which has long transmission distance and strong anti-interference ability.,and the default output constant current value OUTR/OUTG/OUTB is 19MA.
(3) Built-in power-on reset and power-down reset circuits, the light does not light up after power-on.
(4) Two-wire data transmission, unlimited cascading, the maximum serial input data frequency is 30MHz.
-
HD8812B-3535 LED Chip compatible with sk6812 WS2812B 3535
HD8812B-3535/SK6812mini LED are pin to pin function,same lighting effect,same control way. HD8812B-3535 is an intelligent externally controlled LED that integrates a control circuit and a light-emitting circuit.Its appearance is the same as a 3535 LED . Each LED is a pixel.The data protocol adopts a unipolar return-to-zero code communication method. After the LED is powered on, the DIN terminal receives external signal data, and the data regeneration circuit automatically reshapes and forwards the cascaded output data to ensure that the data is transmitted in series without attenuation and normal transmission.
-
HD8808B-3535 LED Chip compatible with WS2815 NS8808 3535
(1) Smart 3535 SMD integrates high-quality external control double-wire serial cascaded constant current IC, but DC12V one led 1pixel addressable, compatible with GS8208, same function with GS8208/WS2815 LED.
(2) The ability to automatically cross the dead pixels, a single point damage does not affect the data transmission and the normal operation of other points.
(3) The default output constant current value OUTR/OUTG/OUTB is 9MA.
(4) Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line.
(5) Built-in power-on reset and power-down reset circuits, the light does not light up after power-on.
(6) Double-wire data transmission, unlimited cascading, data sending rate 800Kbps synchronous refresh.
-
HD107S-2020 LED Chip compatible with APA102 APA107 SK9822 HD107
(1) HD107S IC inside HD107S-2020 LED Chip, which can be compatible with APA102/APA107/LC8823, same function and same control way, but faster FPWM.
(2) Smart SMD integrates high-quality external control double-wire serial cascaded constant current IC.
(3) Complete external control pixel, make the color mix uniformity and consistency.The default output constant current value OUTR/OUTG/OUTB is 17MA.
(4) Two-wire data transmission, unlimited cascading, the maximum serial input data frequency is 32MHz.The PWM refresh frequency is 27KHz.
(5) No data input, zero power consumption when the light is off.
-
HD107-2020 LED Chip compatible with APA102 APA107 SK9822
HD107-2020 SMD LED is our new developed 6pin 2020 smd digital led chip, it is upgrade version of APA102C-2020-256 , pin to pin function and can use same pcb design, each led with one independent clock cable and one data wire, with faster signal than the other single wire digital led chips. Each led is a rgb pixel light,which is greatly use as the lighting source of the slim pcb digital led strip, or many other PCBA products.
-
HD8805B-2020 LED Chip compatible with sk6812 WS2812 2020
(1) HD8805B-2020 LED is a new 2020 pixel LED,it is same function and same control way with sk6812-EC20,each channel is 5mA.
(2) Smart SMD integrates high-quality external control single-wire serial cascaded constant current IC.
(3) Complete external control pixel, make the color mix uniformity and consistency.
(4) Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line.
(5) Single-wire data transmission, unlimited cascading, data sending rate 800Kbps synchronous refresh.
-
HD8805B-1515 LED Chip compatible with sk6812 1515
HD8805B-1515 is an IC addressable pixel integrated 1515 rgb smd led chip. HD8805B-1515 LED is a new 1515 pixel LED, it is 3 wires LED (5v, DAT, GND), it is HD8805B ic inside, which can be compatible with sk6812/ws2812b, same function and same control way. each channel is 5mA, and HD8805B-1515 is 15mA per led.
-
HD8812 SK6812 RGBW Pixel LED Chip
HD8812 RGBW is same with SK6812RGBW LED, it is 4 channels rgbw 4-in-1 digital led chip, It has 4 color chips inside the each led,Red,Green,Blue and “W” color chips. The “W” color cct can be CRI>90 warm white, nature white and cool white, even can be the Yellow or Amber color chips for different options,The RGBW pixel led can be the spi controller control and make your own program for it,also can be dmx controller control with the dmx decoder, or controlled with the artnet controller and work with the software as the madrix, MadMapper,single chip micro computer, Arduino or Raspberry Pi and so on. some factory named ws2812b rgbw, apa109 rgbw, lc8812 rgbw.
