Fixed Competitive Price China High Quality SMD5050 Flexible RGB LED Strip Light (60LEDs/m)

Short Description:

LC8822 led is the upgrade led on the base of SK9822, both LC8822 and SK9822 LED have 4 wires (DC5V, CLOCK, DAT, GND) . The LC8822 and SK9822 has pin to pin function and can use same PCB design, compatible with APA102 and same control way. The double line transmission makes the signal travels very rapid and stable quality, Even to show the videos with a large data transmission on the LED,it also works smoothly and won`t get stuck.


Product Detail

Product Tags

Our workforce through experienced training. Skilled expert knowledge, potent sense of assistance, to satisfy the service demands of customers for Fixed Competitive Price China High Quality SMD5050 Flexible RGB LED Strip Light (60LEDs/m), Now we have extra than 20 years experience during this industry, and our gross sales are properly qualified. We can easily give you quite possibly the most professional tips to meet your products’ specifications. Any troubles, appear to us!
Our workforce through experienced training. Skilled expert knowledge, potent sense of assistance, to satisfy the service demands of customers for China LED Strip, Flexible LED Strip Lamp, We’ve a skilled sales team, they have mastered the best technology and manufacturing processes, have years of experience in foreign trade sales, with customers able to communicate seamlessly and accurately understand the real needs of customers, providing customers with personalized service and unique merchandise.

Product Specifications:

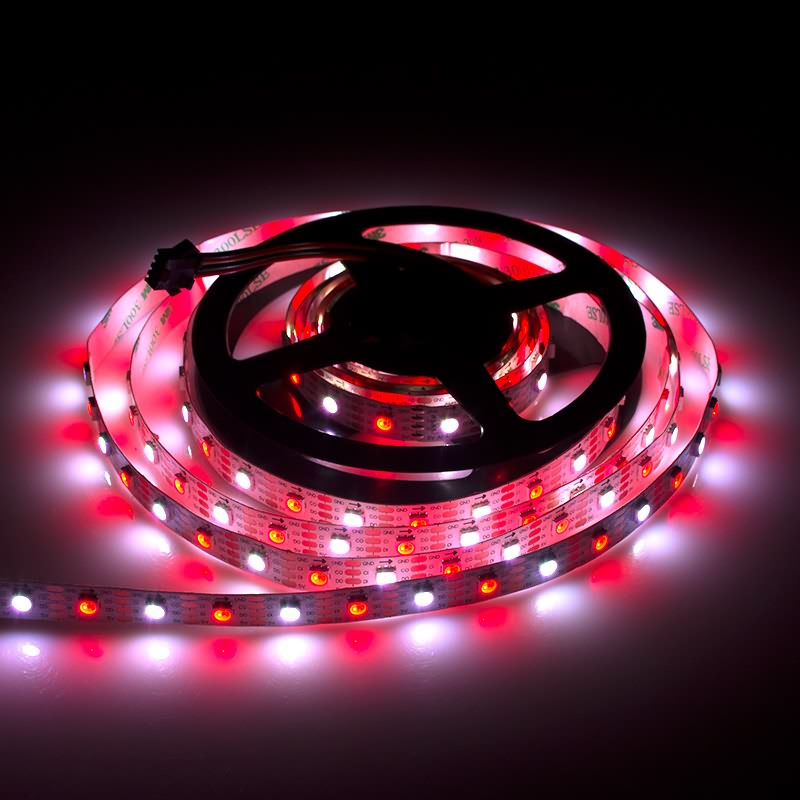

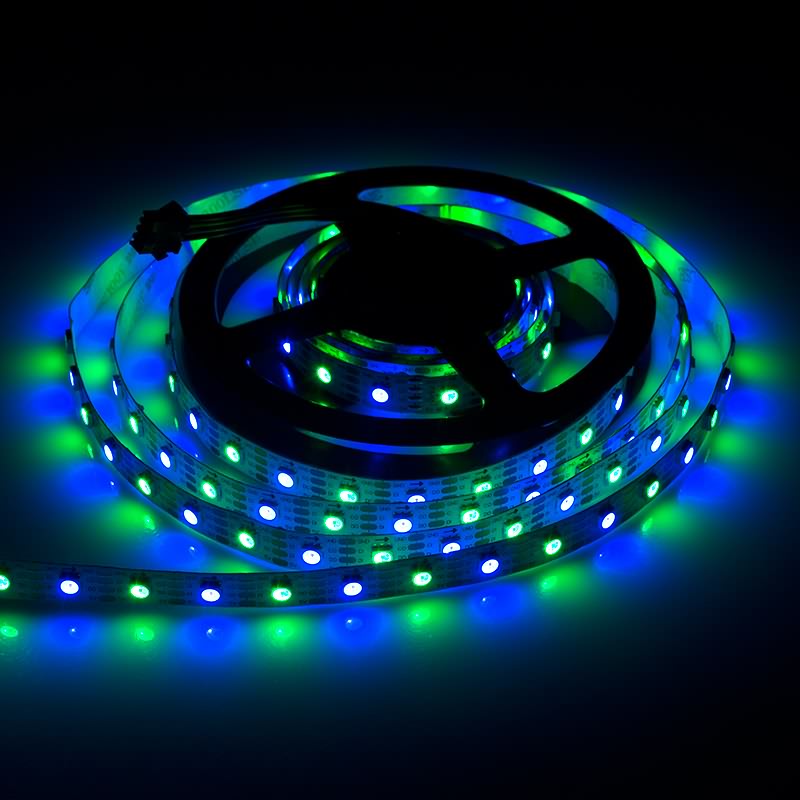

Product Name LC8822/SK9822 RGB LED Strip
LED type 5050 RGB LED
IC type LC8822/SK9822
Emitting color Digital RGB
LED Q’ty 30led/m, 60led/m, 72led/m, 96led/m, 144led/m
Pixel Q’ty 30pixel/m, 60pixel/m, 72pixel/m, 96pixel/m, 144pixel/m
LED View angle 120 Degree
PCB Color White/Black
IP Rating IP20, IP65, IP67, IP68.
Length/Roll 5M/Roll, strip length can be customized
Working Voltage DC5V
Certification: CE, EMC, FCC, LVD, RoHS
CRI (Ra>): 80
Warranty(Year) 2-Years



Model

LED Qty

IC Qty

Voltage

Max Power

Gray Scale

Color

Width

LC-8822X30XM10X-5V

30

30

5V

9W/M

256

Digital RGB

10mm

LC-8822X60XM10W-5V

60

60

18W/M

256

10mm

LC-8822X72XM12X-5V

72

72

21.6W/M

256

12mm

LC-8822X96XM12X-5V

96

96

28.8W/M

256

12mm

LC-8822X144XM12X-5V

144

144

43.2W/M

256

12mm

Application:

It is widely used in decoration and lighting of buildings, bridges, roads, gardens, courtyards, floors, ceilings, furniture, cars, ponds, advertisements, signs, signs and so on,which also has a great advantage in advertising, decoration, construction, commerce, gifts and other markets.

LED Strip Connection Diagram:

NOTE

1. The overload current of the main wire of the LED Strip is the sum of the currents of the sub-wires, so in actual engineering applications, the model of the main wire should be appropriately increased to prevent the wire from overheating and accidents.

2. The AC wiring must be connected to the ground wire to prevent electric shock.

3. The specification is only for regular quotation products, specific products have specified parameters, which are not within the scope of this specification.

FAQ

Q: How to order from you and how to pay?

A:If you need any led products, you can send us the email or inquiry, then we will answer you in time and send you PI with payment way, we are the factory not trade company, so we need to produce according to each order for you.

Q: Do you have warranty for your products?

A:Yes, we have 2year and 3 year warranty for different kinds of led products.

Q:Can I have sample(s) to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. free samples is also acceptable, but The freight is paid by the buyer.

Q: Can you do OEM or make new design products?

A:OEM can be done, we can do as customer request with different size, layout, customer logos and labels, and we made many new design to Customers according to their ideas.

Q: Does all the products designed by yourself?

A:Yes, our boss is also an engineer and we have more than 10year experienced engineer team, all the led products designed by ourselves.
